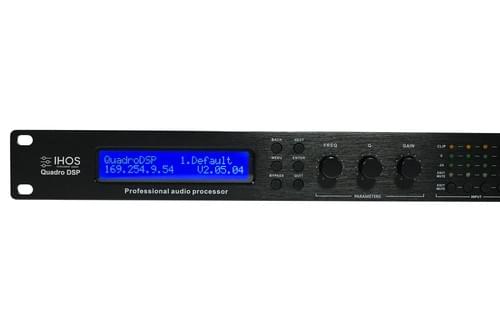

Quadro DSP Speaker Management
RM3,868.00
RM4,835.00
Digital speaker management system, 4 input, 8 outputs full matrix mixing, 32-bit converters with 96khz sampling, USB Connection for PC or RJ45 LAN Connector for Long Distance Control, programmable PC Software, Low-Shelving Equalizer, Hi-Shelving Equalizer, Lo-Cut filter, Hi-Cut filter, All-Pass filter, Compressor / Limiter 6 Digital Compressors / Limiters per Output, state-of-the-art signal processing.
**SHIPMENT COST WILL BE BORNE BY CUSTOMER**
**SHIPMENT COST WILL BE BORNE BY CUSTOMER**
Quantity
Add to cart
More Details
Product description
Professional speaker processor, with variable DSP functions, and integrated compressors, limiters, frequency dividers, dynamic EQ, delayers, equalizers, input and output with FIR phase correction, and audio mixers.
Suitable for stadiums, performances, auditoriums, halls, and conference rooms.
Technical Details
DSPMODULE
- Signal processing: ADI SHARC 21489
- Audio system delay: 2.8 ms
- D/A conversion: 24-bit
- Sampling Rate: 96kHz

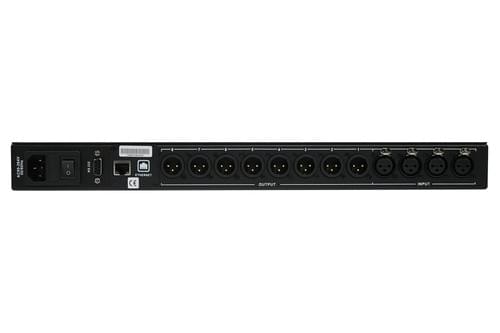

ANALOG AUDIO INPUTS AND OUTPUTS
- Input channel: 4 balanced inputs.Line level.
- Audio interface: Cannon male and female
- Input resistance: 22kÙ
- Maximum input level: 16dBu/Line
- Output channel: 8x balanced outputs, Line level
- Output impedance: 150Ù
AUDIO PERFORMANCE SPECIFICATIONS
- Frequency response curve: 20Hz～40kHz(±0.5dB)/Line
- Noise floor: 20Hz～20kHz,A-wt,-93dBu
- THD+N: -90dB(@0dBu,1kHz,A-wt)/Line
- SNR: 108dB(@16dBu,1kHz,A-wt)/Line
COMMUNICATION PORTS AND INDICATORS
- USB: Micro-B type
- Serial port
- RJ-45, for TCP/IP network connection
- LED Indicators: CLIP, LEVEL, EDIT, MUTE
Physical Dimensions / Electrical characteristics
Power supply range: AC90V～264V50/60Hz
Operating temperature -20℃～80℃
Product dimensions: 483mm×226mm×44.5mm
Packed dimension: 540mm×345mm×77mm
Net weight: 3.2kg
Packed weight 4.1kg
