System Measurement, Testing & Commissioning
Verify System Performance—Before Your Space Goes Live
Measurement-led testing and commissioning for professional audio systems to confirm coverage, intelligibility, headroom, and stability—so the system performs as designed, not as assumed.
Verification of Performance Matters
We conduct system measurement, testing, and commissioning to ensure installed systems perform as intended.
What This Service Is
Commissioning is the structured process of verifying that an installed system meets operational requirements under real-world conditions. We measure, test, tune, and document system performance so stakeholders can sign off with confidence—supported by objective results rather than subjective listening.
- Confirm coverage uniformity and target SPL in the listener area
- Validate speech clarity (intelligibility) for voice-driven spaces
- Ensure DSP is aligned with the system design intent and venue constraints
- Identify installation and configuration issues before handover
- Provide a documented baseline for future maintenance and upgrades
What This Is For
SPL & coverage validation • DSP alignment & tuning • Speech intelligibility verification • Documentation & handover
Auditorium & Multipurpose Hall
Audience members report that the system sounds clear at the front but becomes uneven and unclear toward the rear seating, with noticeable level jumps when walking between sections."
Commissioning Focus
Coverage uniformity, tonal consistency, delay optimization, and gain structure stability.
After Commissioning

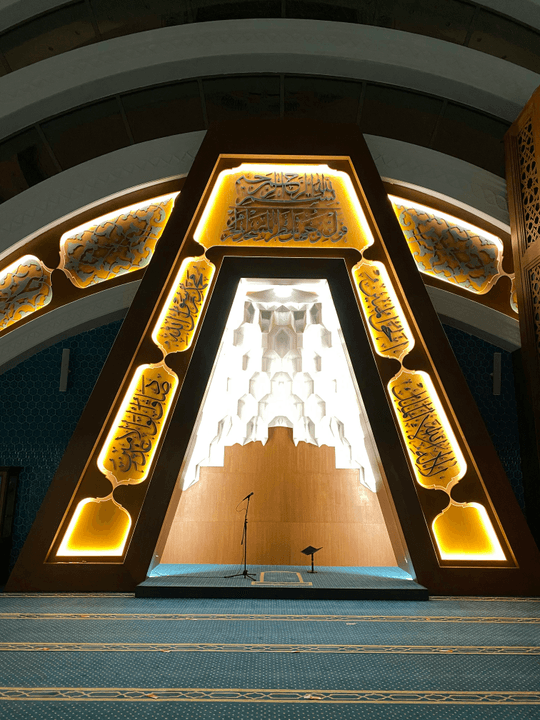

Coverage is balanced across all audience zones, tonal response is consistent, and delays are aligned so speech and program audio remain stable throughout the hall.Mosque, Surau & House of Worship
The imam’s voice is audible near the mihrab but becomes muffled or unstable in other prayer zones, with frequent feedback occurring whenever volume is increased for larger congregations.
Commissioning Focus
Speech intelligibility focus, feedback margin, zoning logic, and consistent voice projection.
After Commissioning
Speech remains clear and natural across all prayer zones, feedback is controlled, and voice projection is consistent without excessive volume.Boardrooms & Conference Room
Remote participants complain about echo and inconsistent voice levels, while in-room microphones intermittently trigger sudden volume changes or cut-offs during discussions.
Commissioning Focus
Microphone-to-loudspeaker integration, echo/AGC behaviour, DSP voice optimization, usability.
After Commissioning
Microphones, loudspeakers, and conferencing platforms function as a unified system, delivering consistent voice levels, natural speech, and reliable user operation.Lecture Halls & Training Room
Students seated at the sides or back struggle to understand the instructor, even though the lecturer hears themselves clearly on stage
Commissioning Focus
Speech reinforcement clarity, instructor mic reliability, audience coverage, and system headroom.
After Commissioning
Speech is intelligible across the entire room, instructors can move freely, and the system maintains clarity without pushing volume limits.Stadium & Sport Halls
Announcements are loud but difficult to understand, with noticeable timing differences between speaker zones that cause echo and listener fatigue during events.
Commissioning Focus
Zoning strategy validation, high-SPL stability, protection settings, delay timing for large areas.
After Commissioning
Zoned systems are time-aligned, announcements are clear and controlled, and the system operates reliably even at higher sound levels.Outdoor/Semi-Outdoor Venues
Speech and announcements become inconsistent depending on weather and crowd noise, requiring operators to continuously adjust levels to maintain intelligibility without triggering system faults.
Commissioning Focus
Environmental constraints, wind/noise effects, coverage control, power and protection verification.
After Commissioning
Zoned systems are time-aligned, announcements are clear and controlled, and the system operates reliably even at higher sound levels.How We Work
1Functional Requirement Over Equipment Selection
We validate whether the system achieves the client’s tional needs (coverage, clarity, headroom, control workflow) independent of brand assumptions.
2Performance Verification Over Assumptions
We measure what matters and quantify results. If performance deviates, we identify root causes and corrective actions.
3Long-Term Reliability Over Short-Term Fixes
Commissioning is not “one-day tuning.” We ensure settings, protection, wiring integrity, and operating procedures support sustainable performance.
TESTING SCOPE
Measurement & Validation
- SPL mapping and coverage checks (front-to-back, left-to-right)
- Frequency response consistency (tonal balance across zones)
- Speech clarity checks (space-dependent intelligibility verification)
- Noise floor checks and headroom assessment (practical operational levels)
System Verification
- DSP configuration review (filters, alignment, delay, limiters, routing)
- Gain structure and feedback margin checks
- Polarity, phase, and signal path verification
- Functional testing (sources, mics, mixers, wireless, playback, streaming/recording, if applicable)
- Control usability checks (wall panels, iPad control, scene presets, user roles)
✅ Acoustic condition sanity check (RT/echo behaviour)
✅ Troubleshooting of persistent feedback/uneven coverage
✅ “As-built” alignment versus design documentation
✅ Operator briefing/handover training
What You Receive
- Commissioning summary report (findings, actions taken, remaining risks)
- Final DSP snapshot/configuration archive (as applicable)
- Test checklist sign-off (functional pass/fail per subsystem)
- Recommended operational settings (target volumes, zone usage, mic handling)
- Baseline documentation for future maintenance and auditing
"Your system becomes supportable: measurable baseline + documented configuration + repeatable operating practice."
What We Commonly Correct During Commissioning
- Incorrect polarity or inconsistent wiring practices
- Misaligned delays causing comb filtering and uneven clarity
- Over-aggressive EQ masking intelligibility instead of improving it
- Limiters/protection not configured to real load conditions
- Gain structure issues causing noise or unstable feedback behaviour
- Zoning logic mismatched to actual venue usage
Engagement Options

Verification Only
Starting at
RM 1,500.00
For newly installed systems that “sound okay” but require proof and documentation.
Recommended

Verification & System Optimization
Starting at
RM 3,500.00
Testing plus corrective tuning, DSP alignment, and operational settings for handover readiness.

Recovery & Stabilization
Messed Up System
Contact Us
For systems with recurring feedback, dead zones, inconsistent level, or user complaints.
Information Required (Before We Mobilize)
- Venue layout and approximate coverage zones
- System list (speakers, amps, DSP, mixers, wireless, control)
- Current DSP file/access method (if available)
- Primary use cases: speech, music, hybrid, prayer, lecture, announcements
- Operating constraints: noise limits, time windows, safety rules, access restrictions
- Any recurring complaints or “known issues” from users
*This can vary depending on client situations
Ready to Sign Off With Confidence? Verify Your System Performance with Professional Testing & Commissioning
Commissioning turns subjective opinions into objective verification. If your venue is nearing handover—or performance is uncertain—we can validate, optimize, and document the system so it performs consistently.
